高级概念

通过直接实现 _run_async_impl 来构建自定义智能体虽然能提供强大的控制能力，但比使用预定义的 LlmAgent 或标准 WorkflowAgent 类型更为复杂。建议先掌握基础智能体类型，再着手处理自定义编排逻辑。

自定义智能体

自定义智能体为ADK提供了终极灵活性，允许您通过直接继承 BaseAgent 并实现自己的控制流来定义任意编排逻辑。这超越了 SequentialAgent、LoopAgent 和 ParallelAgent 的预定义模式，使您能够构建高度定制化的复杂智能体工作流。

引言：超越预定义工作流

什么是自定义智能体？

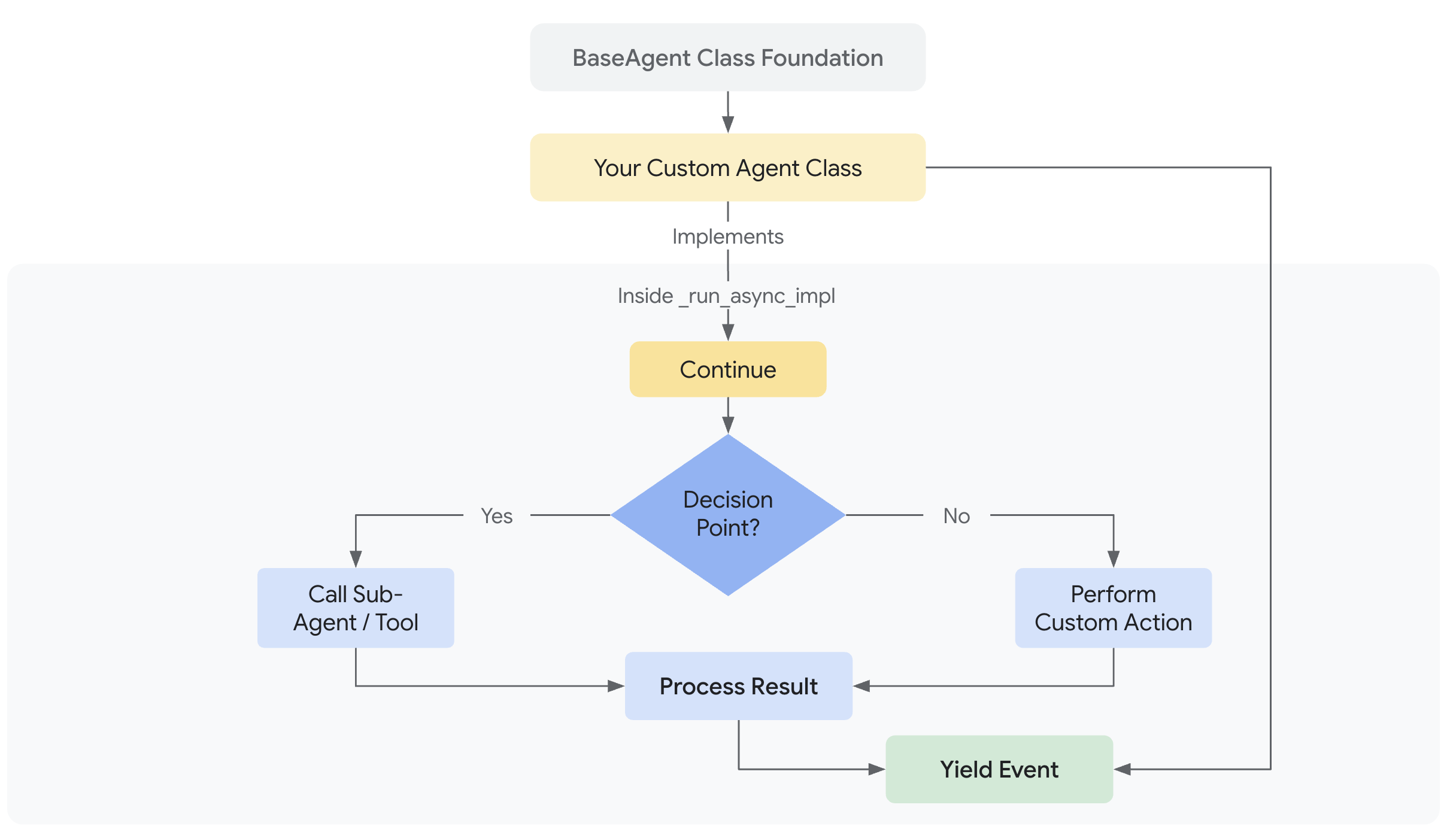

自定义智能体本质上是任何继承自 google.adk.agents.BaseAgent 并在异步方法 _run_async_impl 中实现核心执行逻辑的类。您可以完全控制该方法如何调用其他智能体（子智能体）、管理状态和处理事件。

使用场景

虽然标准工作流智能体（SequentialAgent、LoopAgent、ParallelAgent）涵盖了常见编排模式，但在以下场景需要自定义智能体：

• 条件逻辑：根据运行时条件或上一步结果执行不同的子智能体或路径
• 复杂状态管理：实现超越简单顺序传递的精细状态维护逻辑
• 外部集成：在编排流控制中直接调用外部API、数据库或自定义Python库
• 动态智能体选择：根据对情境或输入的动态评估选择后续子智能体
• 独特工作流模式：实现不符合标准顺序、并行或循环结构的编排逻辑

实现自定义逻辑

自定义智能体的核心是 _run_async_impl 方法，这里定义了其独特行为：

• 签名：async def _run_async_impl(self, ctx: InvocationContext) -> AsyncGenerator[Event, None]:
• 异步生成器：必须是 async def 函数并返回 AsyncGenerator，以便将子智能体或自身逻辑产生的事件 yield 回传给运行器
• ctx（调用上下文）：提供关键运行时信息访问，最重要的是 ctx.session.state——这是自定义智能体编排的步骤间共享数据的主要方式

_run_async_impl 中的关键能力：

1. 调用子智能体：使用子智能体的 run_async 方法调用它们（通常存储为实例属性如 self.my_llm_agent）并生成其事件：

   async for event in self.some_sub_agent.run_async(ctx):
       # 可选检查或记录事件
       yield event # 向上传递事件


2. 状态管理：通过会话状态字典（ctx.session.state）在子智能体调用间传递数据或做出决策：

   # 读取前序智能体设置的数据
   previous_result = ctx.session.state.get("some_key")

   # 基于状态决策
   if previous_result == "some_value":
       # ... 调用特定子智能体 ...
   else:
       # ... 调用其他子智能体 ...

   # 存储结果供后续步骤使用（通常通过子智能体的output_key实现）
   # ctx.session.state["my_custom_result"] = "calculated_value"


3. 实现控制流：使用标准Python结构（if/elif/else、for/while 循环、try/except）创建涉及子智能体的复杂条件或迭代工作流

管理子智能体与状态

通常自定义智能体会编排其他智能体（如 LlmAgent、LoopAgent 等）：

• 初始化：通常将这些子智能体实例传入自定义智能体的 __init__ 方法并存储为实例属性（如 self.story_generator = story_generator_instance），以便在 _run_async_impl 中访问
• sub_agents 列表：使用 super().__init__(...) 初始化 BaseAgent 时应传递 sub_agents 列表，告知ADK框架该自定义智能体直接管理的子智能体层级关系。这对生命周期管理、内省等框架功能至关重要，即使 _run_async_impl 通过 self.xxx_agent 直接调用智能体
• 状态：如前所述，ctx.session.state 是子智能体（特别是使用 output_key 的 LlmAgent）与编排器通信的标准方式，也是编排器向下传递必要输入的通道

设计模式示例：StoryFlowAgent

通过示例展示自定义智能体的强大能力：包含条件逻辑的多阶段内容生成工作流。

目标：创建生成故事→通过评审修订迭代优化→执行最终检查→若最终语气检查失败则重新生成故事的系统

为何自定义：核心需求是基于语气检查结果的条件性重新生成。标准工作流智能体没有基于子智能体任务结果的条件分支功能，需要在编排器中实现自定义Python逻辑（if tone == "negative": ...）

---

第一部分：简化自定义智能体初始化

定义继承自 BaseAgent 的 StoryFlowAgent。在 __init__ 中存储必要子智能体（传入）为实例属性，并告知 BaseAgent 框架该自定义智能体直接管理的顶层智能体。

class StoryFlowAgent(BaseAgent):
    """
    Custom agent for a story generation and refinement workflow.

    This agent orchestrates a sequence of LLM agents to generate a story,
    critique it, revise it, check grammar and tone, and potentially
    regenerate the story if the tone is negative.
    """

    # --- Field Declarations for Pydantic ---
    # Declare the agents passed during initialization as class attributes with type hints
    story_generator: LlmAgent
    critic: LlmAgent
    reviser: LlmAgent
    grammar_check: LlmAgent
    tone_check: LlmAgent

    loop_agent: LoopAgent
    sequential_agent: SequentialAgent

    # model_config allows setting Pydantic configurations if needed, e.g., arbitrary_types_allowed
    model_config = {"arbitrary_types_allowed": True}

    def __init__(
        self,
        name: str,
        story_generator: LlmAgent,
        critic: LlmAgent,
        reviser: LlmAgent,
        grammar_check: LlmAgent,
        tone_check: LlmAgent,
    ):
        """
        Initializes the StoryFlowAgent.

        Args:
            name: The name of the agent.
            story_generator: An LlmAgent to generate the initial story.
            critic: An LlmAgent to critique the story.
            reviser: An LlmAgent to revise the story based on criticism.
            grammar_check: An LlmAgent to check the grammar.
            tone_check: An LlmAgent to analyze the tone.
        """
        # Create internal agents *before* calling super().__init__
        loop_agent = LoopAgent(
            name="CriticReviserLoop", sub_agents=[critic, reviser], max_iterations=2
        )
        sequential_agent = SequentialAgent(
            name="PostProcessing", sub_agents=[grammar_check, tone_check]
        )

        # Define the sub_agents list for the framework
        sub_agents_list = [
            story_generator,
            loop_agent,
            sequential_agent,
        ]

        # Pydantic will validate and assign them based on the class annotations.
        super().__init__(
            name=name,
            story_generator=story_generator,
            critic=critic,
            reviser=reviser,
            grammar_check=grammar_check,
            tone_check=tone_check,
            loop_agent=loop_agent,
            sequential_agent=sequential_agent,
            sub_agents=sub_agents_list, # Pass the sub_agents list directly
        )

---

第二部分：定义自定义执行逻辑

该方法使用标准Python async/await和控制流编排子智能体：

    @override
    async def _run_async_impl(
        self, ctx: InvocationContext
    ) -> AsyncGenerator[Event, None]:
        """
        Implements the custom orchestration logic for the story workflow.
        Uses the instance attributes assigned by Pydantic (e.g., self.story_generator).
        """
        logger.info(f"[{self.name}] Starting story generation workflow.")

        # 1. Initial Story Generation
        logger.info(f"[{self.name}] Running StoryGenerator...")
        async for event in self.story_generator.run_async(ctx):
            logger.info(f"[{self.name}] Event from StoryGenerator: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        # Check if story was generated before proceeding
        if "current_story" not in ctx.session.state or not ctx.session.state["current_story"]:
             logger.error(f"[{self.name}] Failed to generate initial story. Aborting workflow.")
             return # Stop processing if initial story failed

        logger.info(f"[{self.name}] Story state after generator: {ctx.session.state.get('current_story')}")


        # 2. Critic-Reviser Loop
        logger.info(f"[{self.name}] Running CriticReviserLoop...")
        # Use the loop_agent instance attribute assigned during init
        async for event in self.loop_agent.run_async(ctx):
            logger.info(f"[{self.name}] Event from CriticReviserLoop: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        logger.info(f"[{self.name}] Story state after loop: {ctx.session.state.get('current_story')}")

        # 3. Sequential Post-Processing (Grammar and Tone Check)
        logger.info(f"[{self.name}] Running PostProcessing...")
        # Use the sequential_agent instance attribute assigned during init
        async for event in self.sequential_agent.run_async(ctx):
            logger.info(f"[{self.name}] Event from PostProcessing: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        # 4. Tone-Based Conditional Logic
        tone_check_result = ctx.session.state.get("tone_check_result")
        logger.info(f"[{self.name}] Tone check result: {tone_check_result}")

        if tone_check_result == "negative":
            logger.info(f"[{self.name}] Tone is negative. Regenerating story...")
            async for event in self.story_generator.run_async(ctx):
                logger.info(f"[{self.name}] Event from StoryGenerator (Regen): {event.model_dump_json(indent=2, exclude_none=True)}")
                yield event
        else:
            logger.info(f"[{self.name}] Tone is not negative. Keeping current story.")
            pass

        logger.info(f"[{self.name}] Workflow finished.")

逻辑说明：

1. 初始运行 story_generator，其输出预期存入 ctx.session.state["current_story"]
2. 运行 loop_agent（内部调用 critic 和 reviser 进行 max_iterations 次迭代），它们从/向状态读写 current_story 和 criticism
3. 运行 sequential_agent（调用 grammar_check 和 tone_check），读取 current_story 并向状态写入 grammar_suggestions 和 tone_check_result
4. 自定义部分：if 语句检查状态中的 tone_check_result，若为"negative"则再次调用 story_generator 覆盖状态中的 current_story，否则结束流程

---

第三部分：定义LLM子智能体

这些是标准 LlmAgent 定义，负责特定任务。其 output_key 参数对将结果存入 session.state（供其他智能体或自定义编排器访问）至关重要。

GEMINI_FLASH = "gemini-2.0-flash" # Define model constant
# --- Define the individual LLM agents ---
story_generator = LlmAgent(
    name="StoryGenerator",
    model=GEMINI_2_FLASH,
    instruction="""You are a story writer. Write a short story (around 100 words) about a cat,
based on the topic provided in session state with key 'topic'""",
    input_schema=None,
    output_key="current_story",  # Key for storing output in session state
)

critic = LlmAgent(
    name="Critic",
    model=GEMINI_2_FLASH,
    instruction="""You are a story critic. Review the story provided in
session state with key 'current_story'. Provide 1-2 sentences of constructive criticism
on how to improve it. Focus on plot or character.""",
    input_schema=None,
    output_key="criticism",  # Key for storing criticism in session state
)

reviser = LlmAgent(
    name="Reviser",
    model=GEMINI_2_FLASH,
    instruction="""You are a story reviser. Revise the story provided in
session state with key 'current_story', based on the criticism in
session state with key 'criticism'. Output only the revised story.""",
    input_schema=None,
    output_key="current_story",  # Overwrites the original story
)

grammar_check = LlmAgent(
    name="GrammarCheck",
    model=GEMINI_2_FLASH,
    instruction="""You are a grammar checker. Check the grammar of the story
provided in session state with key 'current_story'. Output only the suggested
corrections as a list, or output 'Grammar is good!' if there are no errors.""",
    input_schema=None,
    output_key="grammar_suggestions",
)

tone_check = LlmAgent(
    name="ToneCheck",
    model=GEMINI_2_FLASH,
    instruction="""You are a tone analyzer. Analyze the tone of the story
provided in session state with key 'current_story'. Output only one word: 'positive' if
the tone is generally positive, 'negative' if the tone is generally negative, or 'neutral'
otherwise.""",
    input_schema=None,
    output_key="tone_check_result", # This agent's output determines the conditional flow
)

---

第四部分：实例化并运行自定义智能体

最后实例化 StoryFlowAgent 并照常使用 Runner：

# --- Create the custom agent instance ---
story_flow_agent = StoryFlowAgent(
    name="StoryFlowAgent",
    story_generator=story_generator,
    critic=critic,
    reviser=reviser,
    grammar_check=grammar_check,
    tone_check=tone_check,
)

# --- Setup Runner and Session ---
session_service = InMemorySessionService()
initial_state = {"topic": "a brave kitten exploring a haunted house"}
session = session_service.create_session(
    app_name=APP_NAME,
    user_id=USER_ID,
    session_id=SESSION_ID,
    state=initial_state # Pass initial state here
)
logger.info(f"Initial session state: {session.state}")

runner = Runner(
    agent=story_flow_agent, # Pass the custom orchestrator agent
    app_name=APP_NAME,
    session_service=session_service
)

# --- Function to Interact with the Agent ---
def call_agent(user_input_topic: str):
    """
    Sends a new topic to the agent (overwriting the initial one if needed)
    and runs the workflow.
    """
    current_session = session_service.get_session(app_name=APP_NAME,
                                                  user_id=USER_ID,
                                                  session_id=SESSION_ID)
    if not current_session:
        logger.error("Session not found!")
        return

    current_session.state["topic"] = user_input_topic
    logger.info(f"Updated session state topic to: {user_input_topic}")

    content = types.Content(role='user', parts=[types.Part(text=f"Generate a story about: {user_input_topic}")])
    events = runner.run(user_id=USER_ID, session_id=SESSION_ID, new_message=content)

    final_response = "No final response captured."
    for event in events:
        if event.is_final_response() and event.content and event.content.parts:
            logger.info(f"Potential final response from [{event.author}]: {event.content.parts[0].text}")
            final_response = event.content.parts[0].text

    print("\n--- Agent Interaction Result ---")
    print("Agent Final Response: ", final_response)

    final_session = session_service.get_session(app_name=APP_NAME,
                                                user_id=USER_ID,
                                                session_id=SESSION_ID)
    print("Final Session State:")
    import json
    print(json.dumps(final_session.state, indent=2))
    print("-------------------------------\n")

# --- Run the Agent ---
call_agent("a lonely robot finding a friend in a junkyard")

（注：完整可运行代码包括导入和执行逻辑，参见下方链接）

---

完整代码示例

Storyflow智能体

# StoryFlowAgent示例的完整可运行代码
import logging
from typing import AsyncGenerator
from typing_extensions import override

from google.adk.agents import LlmAgent, BaseAgent, LoopAgent, SequentialAgent
from google.adk.agents.invocation_context import InvocationContext
from google.genai import types
from google.adk.sessions import InMemorySessionService
from google.adk.runners import Runner
from google.adk.events import Event
from pydantic import BaseModel, Field

# --- Constants ---
APP_NAME = "story_app"
USER_ID = "12345"
SESSION_ID = "123344"
GEMINI_2_FLASH = "gemini-2.0-flash"

# --- Configure Logging ---
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)


# --- Custom Orchestrator Agent ---
class StoryFlowAgent(BaseAgent):
    """
    Custom agent for a story generation and refinement workflow.

    This agent orchestrates a sequence of LLM agents to generate a story,
    critique it, revise it, check grammar and tone, and potentially
    regenerate the story if the tone is negative.
    """

    # --- Field Declarations for Pydantic ---
    # Declare the agents passed during initialization as class attributes with type hints
    story_generator: LlmAgent
    critic: LlmAgent
    reviser: LlmAgent
    grammar_check: LlmAgent
    tone_check: LlmAgent

    loop_agent: LoopAgent
    sequential_agent: SequentialAgent

    # model_config allows setting Pydantic configurations if needed, e.g., arbitrary_types_allowed
    model_config = {"arbitrary_types_allowed": True}

    def __init__(
        self,
        name: str,
        story_generator: LlmAgent,
        critic: LlmAgent,
        reviser: LlmAgent,
        grammar_check: LlmAgent,
        tone_check: LlmAgent,
    ):
        """
        Initializes the StoryFlowAgent.

        Args:
            name: The name of the agent.
            story_generator: An LlmAgent to generate the initial story.
            critic: An LlmAgent to critique the story.
            reviser: An LlmAgent to revise the story based on criticism.
            grammar_check: An LlmAgent to check the grammar.
            tone_check: An LlmAgent to analyze the tone.
        """
        # Create internal agents *before* calling super().__init__
        loop_agent = LoopAgent(
            name="CriticReviserLoop", sub_agents=[critic, reviser], max_iterations=2
        )
        sequential_agent = SequentialAgent(
            name="PostProcessing", sub_agents=[grammar_check, tone_check]
        )

        # Define the sub_agents list for the framework
        sub_agents_list = [
            story_generator,
            loop_agent,
            sequential_agent,
        ]

        # Pydantic will validate and assign them based on the class annotations.
        super().__init__(
            name=name,
            story_generator=story_generator,
            critic=critic,
            reviser=reviser,
            grammar_check=grammar_check,
            tone_check=tone_check,
            loop_agent=loop_agent,
            sequential_agent=sequential_agent,
            sub_agents=sub_agents_list, # Pass the sub_agents list directly
        )

    @override
    async def _run_async_impl(
        self, ctx: InvocationContext
    ) -> AsyncGenerator[Event, None]:
        """
        Implements the custom orchestration logic for the story workflow.
        Uses the instance attributes assigned by Pydantic (e.g., self.story_generator).
        """
        logger.info(f"[{self.name}] Starting story generation workflow.")

        # 1. Initial Story Generation
        logger.info(f"[{self.name}] Running StoryGenerator...")
        async for event in self.story_generator.run_async(ctx):
            logger.info(f"[{self.name}] Event from StoryGenerator: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        # Check if story was generated before proceeding
        if "current_story" not in ctx.session.state or not ctx.session.state["current_story"]:
             logger.error(f"[{self.name}] Failed to generate initial story. Aborting workflow.")
             return # Stop processing if initial story failed

        logger.info(f"[{self.name}] Story state after generator: {ctx.session.state.get('current_story')}")


        # 2. Critic-Reviser Loop
        logger.info(f"[{self.name}] Running CriticReviserLoop...")
        # Use the loop_agent instance attribute assigned during init
        async for event in self.loop_agent.run_async(ctx):
            logger.info(f"[{self.name}] Event from CriticReviserLoop: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        logger.info(f"[{self.name}] Story state after loop: {ctx.session.state.get('current_story')}")

        # 3. Sequential Post-Processing (Grammar and Tone Check)
        logger.info(f"[{self.name}] Running PostProcessing...")
        # Use the sequential_agent instance attribute assigned during init
        async for event in self.sequential_agent.run_async(ctx):
            logger.info(f"[{self.name}] Event from PostProcessing: {event.model_dump_json(indent=2, exclude_none=True)}")
            yield event

        # 4. Tone-Based Conditional Logic
        tone_check_result = ctx.session.state.get("tone_check_result")
        logger.info(f"[{self.name}] Tone check result: {tone_check_result}")

        if tone_check_result == "negative":
            logger.info(f"[{self.name}] Tone is negative. Regenerating story...")
            async for event in self.story_generator.run_async(ctx):
                logger.info(f"[{self.name}] Event from StoryGenerator (Regen): {event.model_dump_json(indent=2, exclude_none=True)}")
                yield event
        else:
            logger.info(f"[{self.name}] Tone is not negative. Keeping current story.")
            pass

        logger.info(f"[{self.name}] Workflow finished.")

# --- Define the individual LLM agents ---
story_generator = LlmAgent(
    name="StoryGenerator",
    model=GEMINI_2_FLASH,
    instruction="""You are a story writer. Write a short story (around 100 words) about a cat,
based on the topic provided in session state with key 'topic'""",
    input_schema=None,
    output_key="current_story",  # Key for storing output in session state
)

critic = LlmAgent(
    name="Critic",
    model=GEMINI_2_FLASH,
    instruction="""You are a story critic. Review the story provided in
session state with key 'current_story'. Provide 1-2 sentences of constructive criticism
on how to improve it. Focus on plot or character.""",
    input_schema=None,
    output_key="criticism",  # Key for storing criticism in session state
)

reviser = LlmAgent(
    name="Reviser",
    model=GEMINI_2_FLASH,
    instruction="""You are a story reviser. Revise the story provided in
session state with key 'current_story', based on the criticism in
session state with key 'criticism'. Output only the revised story.""",
    input_schema=None,
    output_key="current_story",  # Overwrites the original story
)

grammar_check = LlmAgent(
    name="GrammarCheck",
    model=GEMINI_2_FLASH,
    instruction="""You are a grammar checker. Check the grammar of the story
provided in session state with key 'current_story'. Output only the suggested
corrections as a list, or output 'Grammar is good!' if there are no errors.""",
    input_schema=None,
    output_key="grammar_suggestions",
)

tone_check = LlmAgent(
    name="ToneCheck",
    model=GEMINI_2_FLASH,
    instruction="""You are a tone analyzer. Analyze the tone of the story
provided in session state with key 'current_story'. Output only one word: 'positive' if
the tone is generally positive, 'negative' if the tone is generally negative, or 'neutral'
otherwise.""",
    input_schema=None,
    output_key="tone_check_result", # This agent's output determines the conditional flow
)

# --- Create the custom agent instance ---
story_flow_agent = StoryFlowAgent(
    name="StoryFlowAgent",
    story_generator=story_generator,
    critic=critic,
    reviser=reviser,
    grammar_check=grammar_check,
    tone_check=tone_check,
)

# --- Setup Runner and Session ---
session_service = InMemorySessionService()
initial_state = {"topic": "a brave kitten exploring a haunted house"}
session = session_service.create_session(
    app_name=APP_NAME,
    user_id=USER_ID,
    session_id=SESSION_ID,
    state=initial_state # Pass initial state here
)
logger.info(f"Initial session state: {session.state}")

runner = Runner(
    agent=story_flow_agent, # Pass the custom orchestrator agent
    app_name=APP_NAME,
    session_service=session_service
)

# --- Function to Interact with the Agent ---
def call_agent(user_input_topic: str):
    """
    Sends a new topic to the agent (overwriting the initial one if needed)
    and runs the workflow.
    """
    current_session = session_service.get_session(app_name=APP_NAME,
                                                  user_id=USER_ID,
                                                  session_id=SESSION_ID)
    if not current_session:
        logger.error("Session not found!")
        return

    current_session.state["topic"] = user_input_topic
    logger.info(f"Updated session state topic to: {user_input_topic}")

    content = types.Content(role='user', parts=[types.Part(text=f"Generate a story about: {user_input_topic}")])
    events = runner.run(user_id=USER_ID, session_id=SESSION_ID, new_message=content)

    final_response = "No final response captured."
    for event in events:
        if event.is_final_response() and event.content and event.content.parts:
            logger.info(f"Potential final response from [{event.author}]: {event.content.parts[0].text}")
            final_response = event.content.parts[0].text

    print("\n--- Agent Interaction Result ---")
    print("Agent Final Response: ", final_response)

    final_session = session_service.get_session(app_name=APP_NAME,
                                                user_id=USER_ID,
                                                session_id=SESSION_ID)
    print("Final Session State:")
    import json
    print(json.dumps(final_session.state, indent=2))
    print("-------------------------------\n")

# --- Run the Agent ---
call_agent("a lonely robot finding a friend in a junkyard")
